Okay, so I had this idea to make my workbench height-adjustable. You know, sometimes I’m working on tiny electronics, and I want to hunch over it, and other times I’m assembling something big and need the table higher. I figured a motorized scissor lift would be perfect.
The Hunt for Parts
First, I needed a scissor lift. I looked at a few pre-made options, but they were either way too expensive or not the right size. So, I decided to build my own. I snagged some heavy-duty steel flat bars from the local hardware store – the kind used for, like, gates and stuff. I also picked up a bunch of bolts, nuts, and washers. The motorized part was a little trickier.
The Motor Dilemma

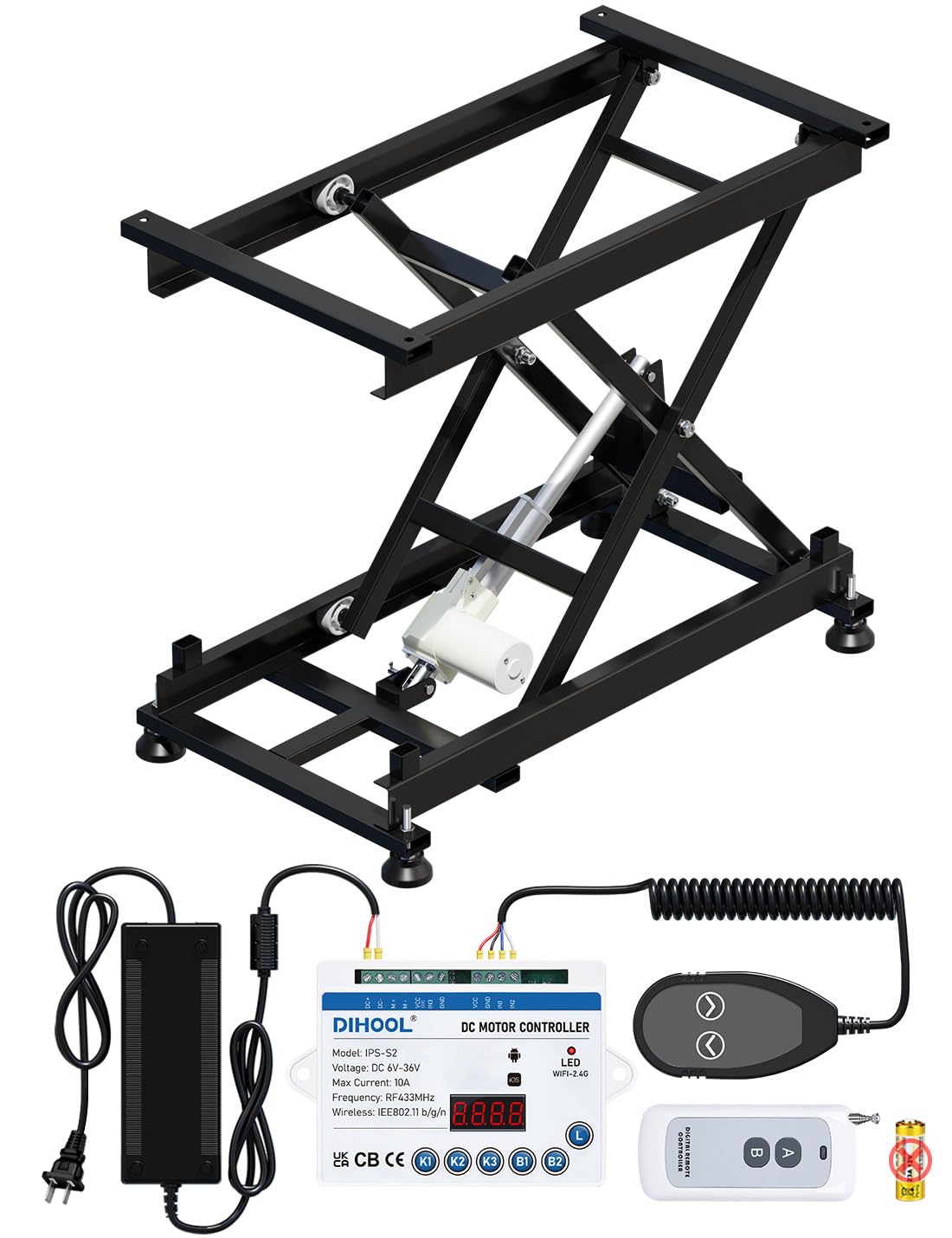

I went back and forth between using a linear actuator or a regular motor with some kind of screw drive. Linear actuators are simple, but the ones that could handle the weight I needed were pricey. Eventually, I found a strong, geared DC motor – the type you might find in a power drill, only beefier. I paired it with a long threaded rod and a matching nut. The idea was the motor would turn the rod, and the nut would travel along it, pushing the scissor mechanism up and down.
Building the Scissor Mechanism
Cutting the steel was a workout! I used an angle grinder with a metal cutting disc. Lots of sparks. I made sure to wear safety glasses and gloves, obviously. The trickiest part was getting all the holes drilled in the right places. Measure twice (or, in my case, like five times), drill once. I bolted the steel bars together in a criss-cross pattern, making sure they could pivot smoothly. It took some fiddling, but eventually, I had a sturdy scissor mechanism.
Putting it All Together
I mounted the motor to the base of the lift and welded the nut to one of the scissor arms. Then, I threaded the rod through the nut and connected it to the motor’s shaft. The wiring was pretty basic: a power supply, a switch, and the motor. I used a toggle switch so I could easily change the direction of the motor (up or down).
The Moment of Truth
I flipped the switch, and… it worked! Slowly but surely, the table started to rise. It was a little wobbly at first, so I added some extra bracing to the scissor mechanism. I also added some limit switches to prevent the lift from going too high or too low. Those were just simple little switches that would cut power to the motor when the lift reached a certain point.
- Improvements I made:
- Added bracing for stability.
- Installed limit switches for safety.
- Lubricated all the moving parts.
It’s not the prettiest thing in the world, but it works great! Now I can adjust my workbench to the perfect height for whatever project I’m working on. My back is definitely thanking me.
